ICT PRIME – a product innovation among data centers

ICT Prime is the clever infrastructure solution for data centers with an IT area of 200 m² or more. For small and medium-sized data centers with IT areas from 20 m² to 120 m² we offer the modules of ICT MICROPRIME.

ICT PRIME stands for the Prefabricated, Innovative, Modular and Efficient realization of data centers.

Due to their modular design, ICT PRIME data centers are scalable in area and number of floors, allowing for further expansion stages. In addition, they can be constructed in less time thanks to the high degree of prefabrication of the modules in our Cadolzburg plant.



Is ICT PRIME right for you?

ICT PRIME is the optimal solution for customers with a rapidly growing or volatile business development (cloud providers, colocation, industrial customers) to synchronize their business and data center strategy.

ICT MICROPRIME - prefabricated data center modules from 6 to 48 server racks

Our innovative, yet flexible and standardized ICT MICROPRIME modules offers you a choice from five modules with different surface areas and capacities. These modules can be air or water-cooled, depending on your individual requirements. ICT MICROPRIME is most suitable for small and medium-sized IT locations with from 6 racks (20 m², 30 kW) up to 48 racks (120 m², 240 kW).

Each of the five modules themselves consist of modular components, which contain the IT environment and the complete infrastructure technology thereof, i.e. electrical engineering with separate A/B paths.

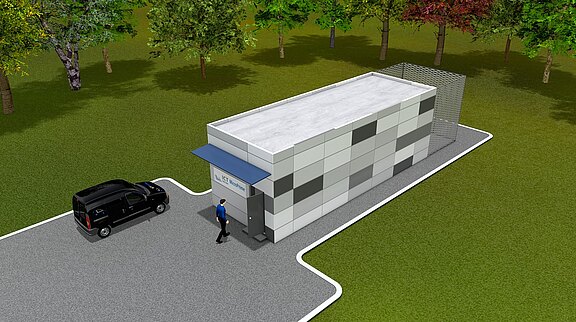

  • ​​​​​​Module MP 6: A maximum of 6 IT racks (800 mm wide) with a total output of 30 kW can be installed in this small computer room of 20 m².

  • Module MP 12: This module has an increased area of 36 m² and, with an output of up to 60 kW, twice the power. Here 12 IT racks can be accommodated.

  • Module MP 18: The MP 18 module already contains 18 racks in a 50 m² area with a output capacity of 90 kW.

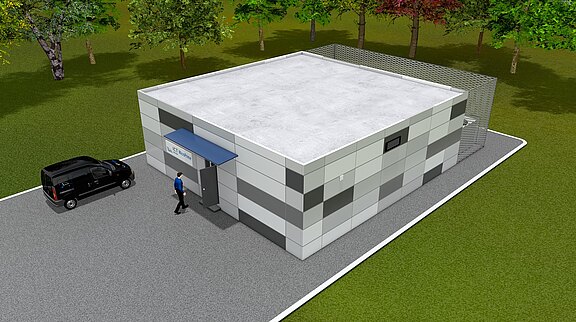

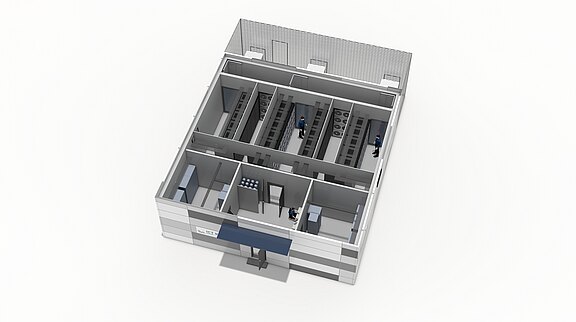

  • Module MP 24: A further increase in the number of IT racks up to 24 is possible in module MP 24. Here you can utilize 65 m² of space with a maximum output of 120 KW.

  • Module MP 48: The high-performance model, MP 48, can accommodate 48 racks on 120 m² and has a total output of 240 kW.

ICT PRIME offers

Pros of contracting ICT PRIME...

  • Highest degree of prefabrication, preassembly, and modularization by relocating construction and assembly to our factory

  • Individual modular construction of up to 3 IT levels

  • Shorter implementation times (30-50% faster)

  • Higher quality of execution

  • Sustainable construction (waste reduction 40-90%)

  • Options for subsequent expansion

ICT PRIME Gallery

Site Pictures
