Scope of services ICT Facilities
Technical Building Equipment/Facilities - General Contractor

IT Area: 600 m²
IT Performance: 1.2 MW
PUE Factor: <1.3
Availability Class: TIER IV (electrical: 2N and mechanical: 2N topology)

Scope of services ICT Facilities

Technical Building Equipment/Facilities – General Contractor

IT Area: 600 m²

IT Performance: 1.2 MW

PUE factor: < 1.3

Availability class: TIER IV (electrical: 2N and mechanical: 2N topology)

Scope of Services ICT Facilities

Planning, Construction and Commissioning

IT Area: 650 m²

IT Performance: 1.5 MW

PUE Factor: <1.3

Availability class: Based on availability class III according to DIN EN 50600.

Scope of Services ICT Facilities

Planning, Construction and Commissioning

IT Area: 20 m², plus 4 distributor rooms

IT Performance: max 20 kW

PUE Factor: <1.5

Availability class: VK 2+ according to DIN EN 50600-2-2/-2-3

Scope of services ICT Facilities

Planning - performance phases 1-7

IT Area: 50 m²

IT Performance: 100 kW

PUE Factor: <1.3

Availability class: VK 3 according to DIN EN 50600

Leistungsumfang ICT Facilities
Planen - performance phases 1-7

IT-Fläche: 1,600 m²
IT-Leistung: 3.2 MW
PUE Faktor: <1.3
Verfügbarkeitsklasse: TSI-Level 4 Dual Site
  (electrical: 2N und mechanical: N+1 topology)

Scope of services ICT Facilities

Planning – performance phases 1-7

IT Area: 1,600 m²

IT Performance: 3.2 MW

PUE Factor: <1.3

Availability class: TSI-Level 4 Dual Site (electrical: 2N and mechanical: N+1 topology)

Scope of services ICT Facilities
Planning, construction and commissioning

IT Area: 1.500 m² (1^st construction phase)
IT Performace: 1.5 MW
PUE Factor: <1.3
Availability class: VK 3(+) according to DIN EN 50600

Scope of services ICT Facilities
Planning – performance phases 1-7

IT-Area: 660 m² (1^st expansion phase)
IT-Performance: 1.0 MW
PUE Factor: <1.2
Availability class: TSI-Level 3 and TIER III

Scope of services ICT Facilities

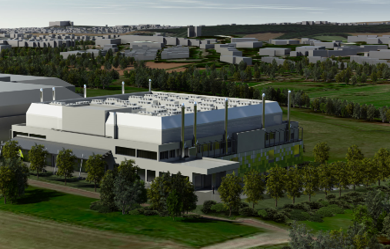

ICT Facilities comprehensively supported the building owner, maincubes one Immobilien GmbH & Co. KG, in the conception and planning. As a result, the building owner now has the highest possible security in terms of costs, time planning, and quality.

General contractor (performance phases according to HOAI 1-8)

Concept, design, detail, and approval planning for the architecture as well as the mechanical, electrical and safety infrastructures.

IT Area: 4,200 m²
IT Performance: 6 MW
PUE Factor: <1.3
Availability class: TIER III+ (electrical: 2N und mechanical: N+1 topology)

Scope of services ICT Facilities

Technical Building Equipment/Facilities

IT Area: 600 m²

IT Performance: 1.2 MW

PUE factor: < 1.3

Availability class: TIER IIII (electrical: 2N and mechanical: 2N topology)

Scope of services ICT Facilities

The consulting services included suitable concepts for the air conditioning and the power supply, which is secured several times, including the connection to a NEA as well as the IT racks with enclosure.

In an internal, production-related part of the building, the existing IT systems were accommodated in a new environment in new IT racks in a cold cycle enclosure to minimize energy costs. In addition, the redundant UPS systems were again cross connected to the power distribution systems via several ATS. The air conditioning systems are designed with an N+1 redundancy.

To increase availability, both a multi-part fire alarm system and an oxygen reduction system with redundant compressors have been installed.

IT Area: 60 m²

IT Performance: 100 kW

PUE Factor: 1.4

Availability class: TIER III

• Scope of services ICT Facilities:
• Planen – LPH 1-4
•
• IT Space:  4.730 m²
• IT Performance:  7.300 kW
• PUE Factor:  <1,3
• Availability class:  3 according to to DIN EN 50600

Scope of Services ICT Facilities
General Contractor

IT-Fläche: 75 m²
IT-Leistung: 144 kW
PUE Faktor: <1.3
Verfügbarkeitsklasse: TIER 2 (electrical and mechanical redundancy)

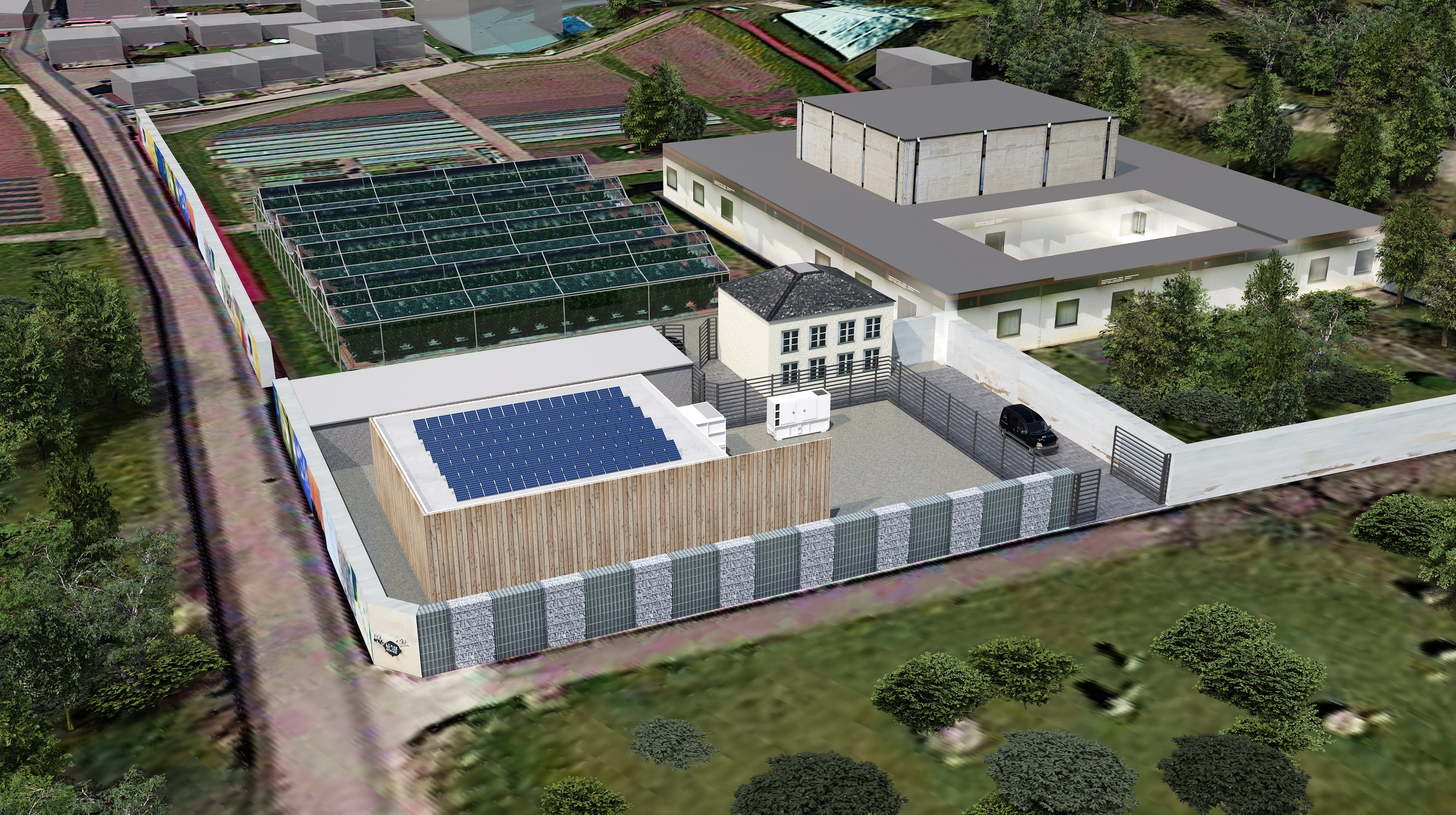

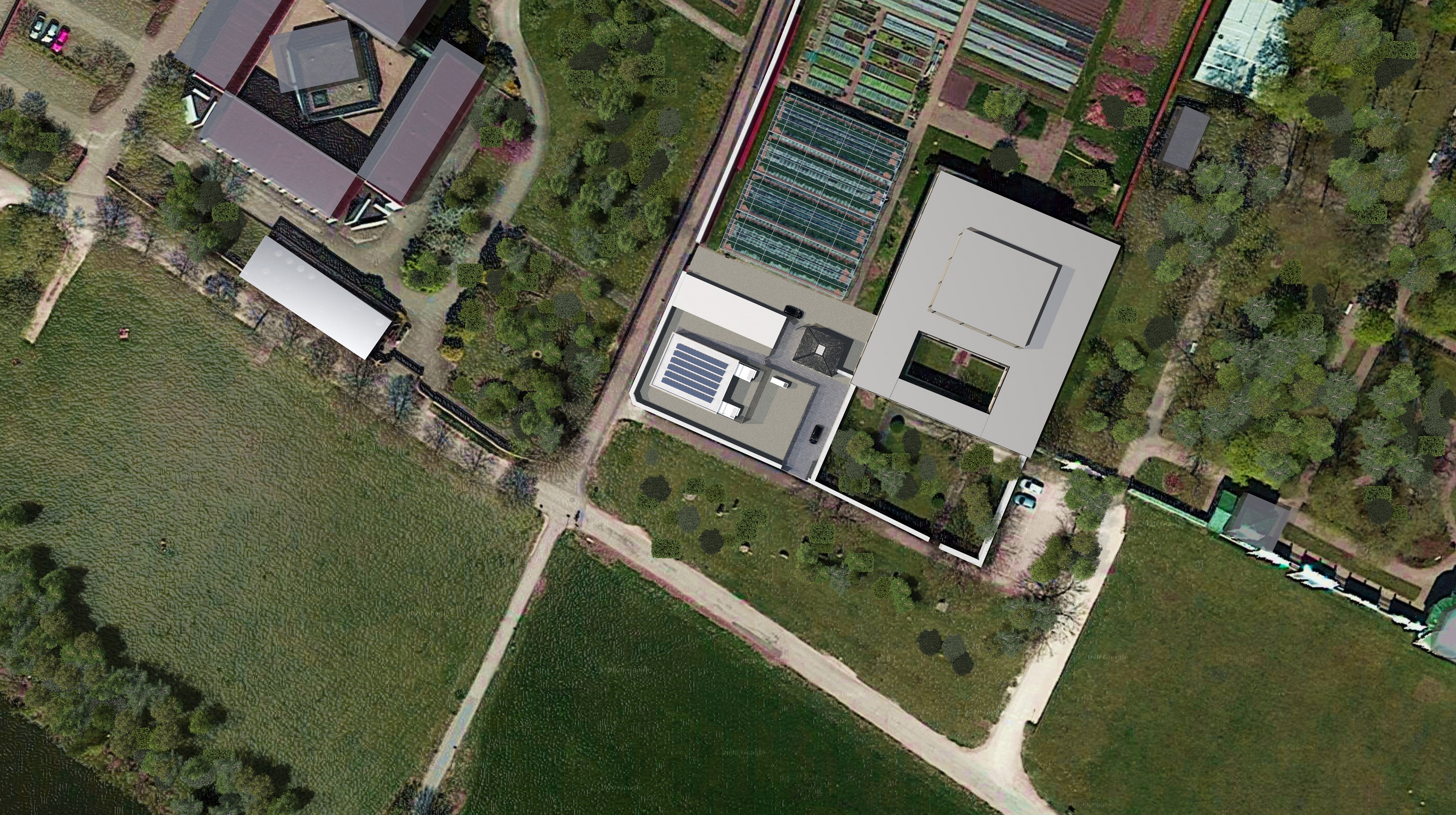

IT Space: 130 m²

Racks: 32 pieces in final stage (Day 1: 16 pieces)

Spec. output per rack: 10 kW

IT capacity: 320kW (160 kW Day 1)

Supply power: 480 kW

UPS power: 400 kW

Reserve power: 15 min

Cooling capacity: 340 kW

Cooling: Cooling units with water as refrigerant

Certification: Blue Angel

Availability class: VK3

Security class: SK4
